• full height
• flush finish
• hydraulically closing doors
• stainless steel fittings with emergency release
• aluminum frame
• 15 year manufacturing guarantee.

Finishes

• Glass- Back painted glass.
• Low-Iron, Clear, Range of standard colors, RAL match on request.
• Wood Veneer - Real wood veneer backed with composite material to enable fabrications
• Matt, Silk, Relief, Grained, Unfinished, Optional cross grain.
• Stainless Steel: Metallic sheet bonded to MDF core, edge dependent on the material.
• Brushed stainless steel, Patterned stainless steel, Satin anodised aluminum, Powder coated aluminum.
• High-Pressure Laminate -Multiple layers of resin impregnated high-quality kraft papers.
• High Pressure Laminate, Extensive range of colours, Wide selection of suppliers, Colour match on request, Digital prints, Wood grains.

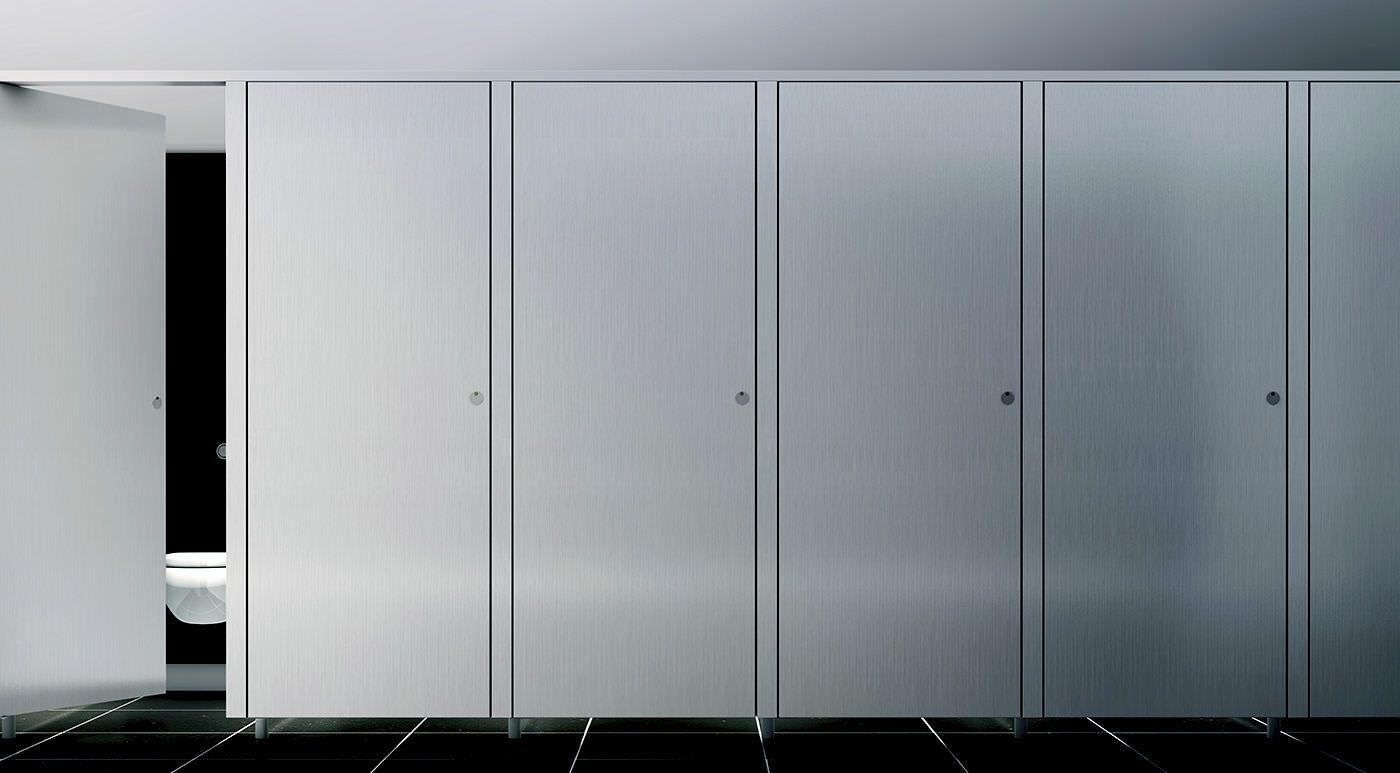

Overall cubicle height up to 2700mm with an 8mm floor clearance.

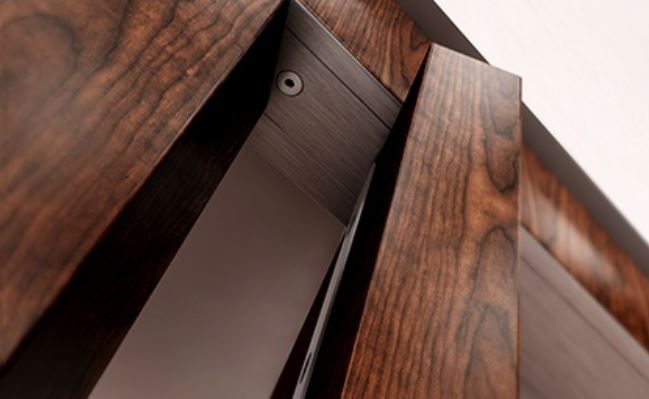

Full anodised aluminum frame, with extruded headrail finished with matching finish. Lock locates into receiver integrated within the vertical fascia.

42mm finished thickness consisting of a 29mm ultra lightweight MDF core, faced in high pressure laminate, then rebated and hand-lipped, to accept 5mm low-iron back painted toughened glass to both faces. Concealed fixings within the door allow attachment to stainless steel pivots, suspended from aluminium headrail and located onto floor fixed pivot bracket. Door falls closed by means of a hydraulic door closer concealed within the aluminum headrail (the closer can also be factory set to fall open).

70mm finished thickness consisting of two 12mm moisture resistant MDF core panels sourced from sustainable forests, faced in high pressure laminate, then edged all round and attached to a central aluminum frame. Panel faces finished with 5mm low-iron back painted safety glass. Flush aluminum lock receiver fitted into frame.

32mm finished thickness consisting of a 22mm moisture resistant chipboard core, faced in high pressure laminate and finished to top and bottom edges. Two adjacent 5mm low-iron back painted toughened glass panels, bonded to each face. Suspended 8mm from the floor using concealed fixings (alternatively, the divider can be located in a floor channel).

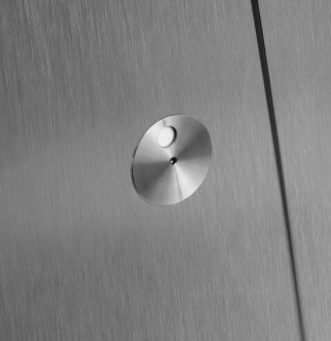

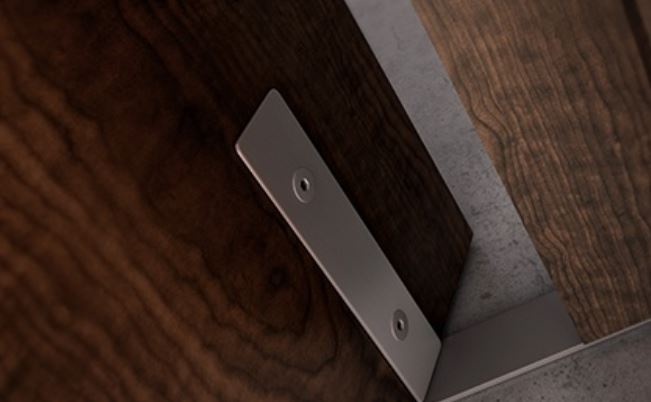

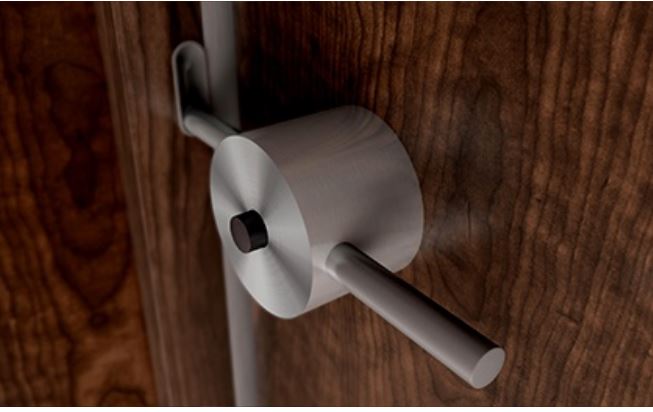

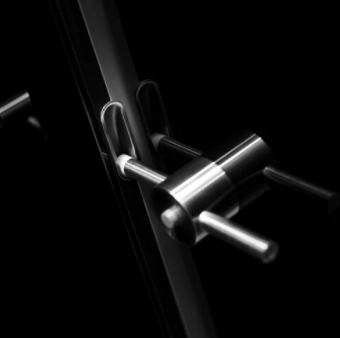

Engineered 303 grade brushed stainless steel lock, fixed through the door to the face plate for added strength. Sacrificial hard nylon shear tip to the lock finger, which locates into flush receiver, integrated within the cubicle fascia. Complete with emergency release facility and buffer. Divider fixed to back wall using concealed steel brackets, fastened by through-fixings. Divider connected to front fascia using unique magnetic invisible fixings (except glass). Stainless steel coat hook supplied as standard. Tested to 350,000 cycles.

Overall cubicle height up to 2700mm with an 8mm floor clearance.
