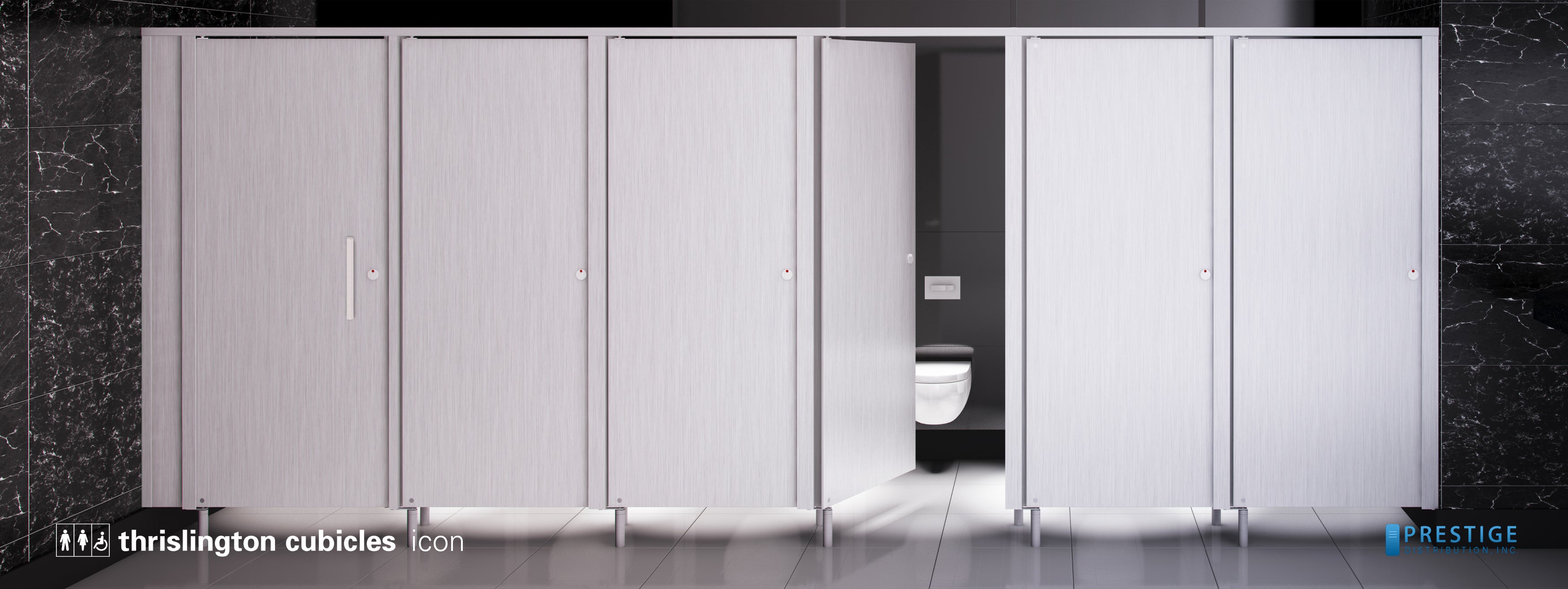

The Thrislington Icon Toliet Partition is a perfect marriage of elegance and smart thinking, Icon’s clean lines are only made possible by a simple exposed aluminum frame, alongside aluminum fittings and self closing 27mm thick doors.

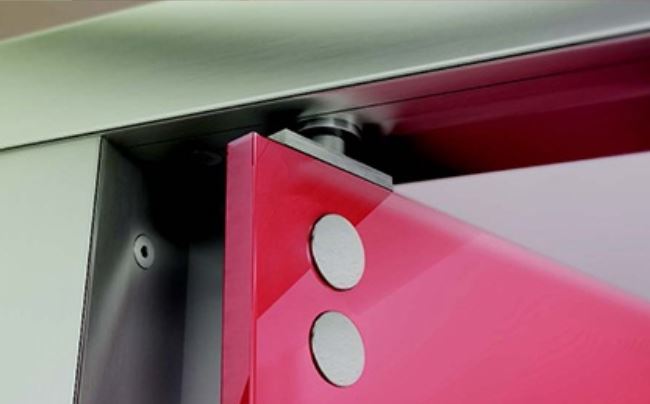

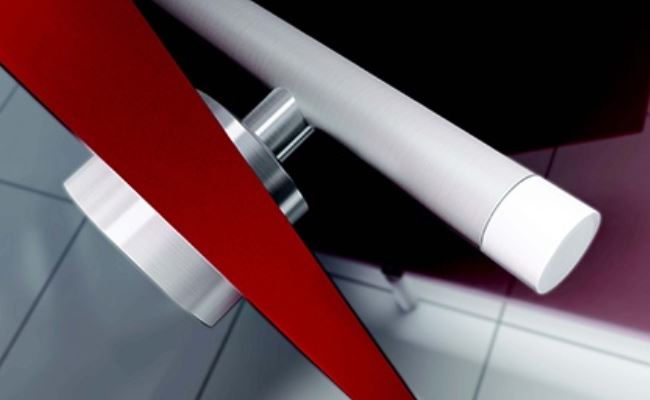

Headrail

Visible full aluminium frame. Pivoted door. Aluminium fittings.

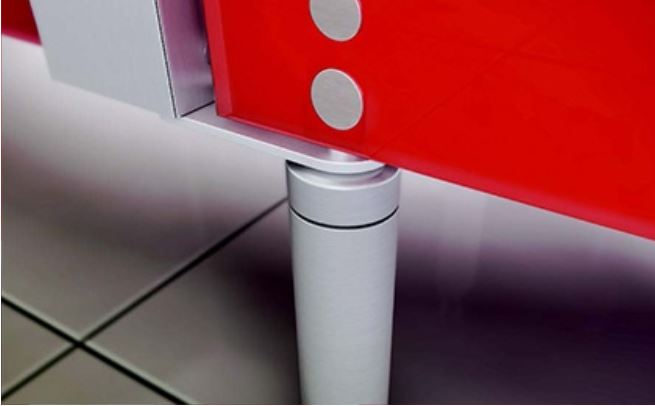

Foot

Concealed self-closing door closer in foot. Standard height of 2000mm with 150mm floor gap. Available in certain finishes in full height version up to 2500mm with 100mm floor gap.

Lock

Anti-fingertrap. Machined aluminium lock locates into post. Emergency release.

Self Closing Mechanism

Door falls shut or open using concealed self-closing door mechanism.

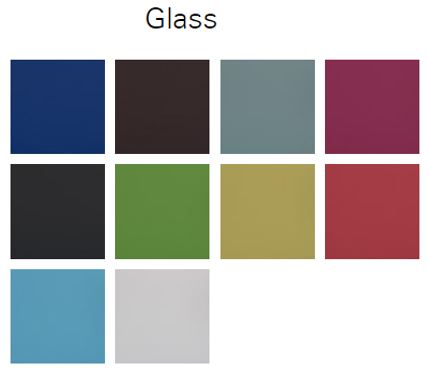

Glass

Toughened glass, laminated or back painted to specified level of obscurity.

Options:

Laminated glass, Low-Iron, Clear, Range of standard colours, RAL colour match on request.

Overall standard cubicle height 2000mm with 150mm floor clearance. Full height version available up to 2500mm tall with a 100mm floor gap.

Full anodised aluminium frame, with extruded headrail and vertical posts. Lock locates directly into vertical closing post, incorporating full length buffer.

10mm back painted toughened glass or 10.76mm toughened laminated glass, polished to all edges. Flush aluminium studs secured through the door to the pivot brackets, allow the door to pivot between aluminium headrail and engineered aluminium foot. Foot incorporates height adjustment and sealed bearing providing self-closing mechanism (alternatively, the mechanism can be factory set to fall open). Complete with anti-finger trap clearance on pivot side of door.

10mm back painted toughened glass or 10.76mm toughened laminated glass, polished to all edges. Supported 150mm from the floor by an engineered anodised aluminium foot, with height adjustment.

Engineered anodised aluminium lock, fixed through the door to the face plate for added strength. Incorporating a machined aluminium bar, with a sacrificial hard nylon shear tip, which locates into the vertical closing post. Complete with emergency release facility. Divider fixed to back wall using through-fixed extruded aluminium brackets. Aluminium coat hook supplied as standard. Tested to 350,000 cycles.

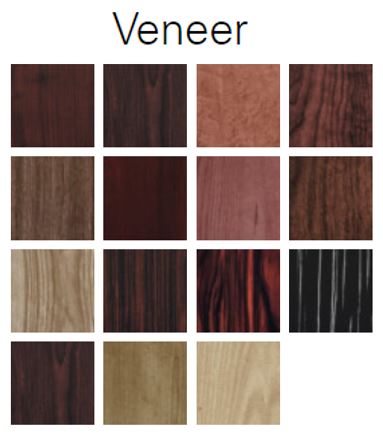

Wood Veneer

Toughened glass, laminated or back painted to specified level of obscurity.

Options:

Matt, Silk, Relief, Grained, Unfinished, Optional cross grain.

Overall standard cubicle height 2000mm with 150mm floor clearance. Full height version available up to 2500mm tall with a 100mm floor gap.

Full anodised aluminium frame, with extruded headrail and vertical posts. Lock locates directly into vertical closing post, incorporating full length buffer.

27mm finished thickness consisting of a 25mm moisture resistant chipboard core, edged first and faced with wood veneer. Flush aluminium studs secured through the door to the pivot brackets, allow the door to pivot between aluminium headrail and engineered aluminium foot. Foot incorporates height adjustment and sealed bearing providing self-closing mechanism (alternatively, the mechanism can be factory set to fall open). Complete with anti-finger trap clearance on pivot side of door.

17mm finished thickness consisting of a 15mm moisture resistant chipboard core, lip-edged first to visible edges, then faced with wood veneer. Supported 150mm from the floor by an engineered anodised aluminium foot, with height adjustment.

Engineered anodised aluminium lock, fixed through the door to the face plate for added strength. Incorporating a machined aluminium bar, with a sacrificial hard nylon shear tip, which locates into the vertical closing post. Complete with emergency release facility. Divider fixed to back wall using through-fixed extruded aluminium brackets. Aluminium coat hook supplied as standard.

Stainless Steel

Metallic sheet bonded to MDF core, double folded on vertical edges.

Options:

Brushed stainless steel, Patterned stainless steel, Satin anodised aluminium, Powder coated aluminium.

Overall standard cubicle height 2000mm with 150mm floor clearance. Full height version available up to 2500mm tall with a 100mm floor gap.

Full anodised aluminium frame, with extruded headrail and vertical posts. Lock locates directly into vertical closing post, incorporating full length buffer.

27mm finished thickness consisting of a 25mm moisture resistant chipboard core, edged top and bottom in matching high pressure laminate, then faced both sides with aluminium sheet, each double folded to create vertical seam in the centre of the door edge. Flush aluminium studs secured through the door to the pivot brackets, allow the door to pivot between aluminium headrail and engineered aluminium foot. Foot incorporates height adjustment and sealed bearing providing self-closing mechanism (alternatively, the mechanism can be factory set to fall open). Complete with anti-finger trap clearance on pivot side of door.

17mm finished thickness consisting of a 15mm moisture resistant chipboard core, lip-edged first to visible edges with a matching high pressure laminate, then faced with aluminium sheet. Supported 150mm from the floor by an engineered anodised aluminium foot, with height adjustment.

Engineered anodised aluminium lock, fixed through the door to the face plate for added strength. Incorporating a machined aluminium bar, with a sacrificial hard nylon shear tip, which locates into the vertical closing post. Complete with emergency release facility. Divider fixed to back wall using through-fixed extruded aluminium brackets. Aluminium coat hook supplied as standard.

Aluminium

Metallic sheet bonded to MDF core, double folded on vertical edges.

Options:

Brushed stainless steel, Patterned stainless steel, Satin anodised aluminium, Powder coated aluminium.

Overall standard cubicle height 2000mm with 150mm floor clearance. Full height version available up to 2500mm tall with a 100mm floor gap.

Full anodised aluminium frame, with extruded headrail and vertical posts. Lock locates directly into vertical closing post, incorporating full length buffer.

27mm finished thickness consisting of a 25mm moisture resistant chipboard core, edged top and bottom in matching high pressure laminate, then faced both sides with aluminium sheet, each double folded to create vertical seam in the centre of the door edge. Flush aluminium studs secured through the door to the pivot brackets, allow the door to pivot between aluminium headrail and engineered aluminium foot. Foot incorporates height adjustment and sealed bearing providing self-closing mechanism (alternatively, the mechanism can be factory set to fall open). Complete with anti-finger trap clearance on pivot side of door.

17mm finished thickness consisting of a 15mm moisture resistant chipboard core, lip-edged first to visible edges with a matching high pressure laminate, then faced with aluminium sheet. Supported 150mm from the floor by an engineered anodised aluminium foot, with height adjustment.

Engineered anodised aluminium lock, fixed through the door to the face plate for added strength. Incorporating a machined aluminium bar, with a sacrificial hard nylon shear tip, which locates into the vertical closing post. Complete with emergency release facility. Divider fixed to back wall using through-fixed extruded aluminium brackets. Aluminium coat hook supplied as standard.

Compact Grade Laminate

Multiple layers of resinimpregnated high quality kraft papers.

Options:

Compact Grade Laminate, High Pressure Laminate, Extensive range of colours, Wide range of suppliers, Colour match on request, Wood grains, Digital prints.

Overall standard cubicle height 2000mm with 150mm floor clearance. Full height version available up to 2500mm tall with a 100mm floor gap.

Full anodised aluminium frame, with extruded headrail and vertical posts. Lock locates directly into vertical closing post, incorporating full length buffer.

12mm compact grade laminate, polished to all edges. Flush aluminium studs secured through the door to the pivot brackets, allow the door to pivot between aluminium headrail and engineered aluminium foot. Foot incorporates height adjustment and sealed bearing providing self-closing mechanism (alternatively, the mechanism can be factory set to fall open). Complete with anti-finger trap clearance on pivot side of door.

12mm compact grade laminate, polished to visible edges. Supported 150mm from the floor by an engineered anodised aluminium foot, with height adjustment.

Engineered anodised aluminium lock, fixed through the door to the face plate for added strength. Incorporating a machined aluminium bar, with a sacrificial hard nylon shear tip, which locates into the vertical closing post. Complete with emergency release facility. Divider fixed to back wall using through-fixed extruded aluminium brackets. Aluminium coat hook supplied as standard.

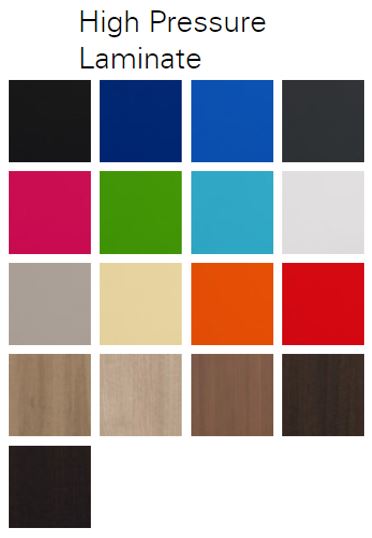

High Pressure Laminate

Multiple layers of resinimpregnated high quality kraft papers.

Options:

Compact Grade Laminate, High Pressure Laminate, Extensive range of colours, Wide range of suppliers, Colour match on request, Wood grains, Digital prints.

Overall standard cubicle height 2000mm with 150mm floor clearance. Full height version available up to 2500mm tall with a 100mm floor gap.

Full anodised aluminium frame, with extruded headrail and vertical posts. Lock locates directly into vertical closing post, incorporating full length buffer.

12mm compact grade laminate, polished to all edges. Flush aluminium studs secured through the door to the pivot brackets, allow the door to pivot between aluminium headrail and engineered aluminium foot. Foot incorporates height adjustment and sealed bearing providing self-closing mechanism (alternatively, the mechanism can be factory set to fall open). Complete with anti-finger trap clearance on pivot side of door.

12mm compact grade laminate, polished to visible edges. Supported 150mm from the floor by an engineered anodised aluminium foot, with height adjustment.

Engineered anodised aluminium lock, fixed through the door to the face plate for added strength. Incorporating a machined aluminium bar, with a sacrificial hard nylon shear tip, which locates into the vertical closing post. Complete with emergency release facility. Divider fixed to back wall using through-fixed extruded aluminium brackets. Aluminium coat hook supplied as standard.
